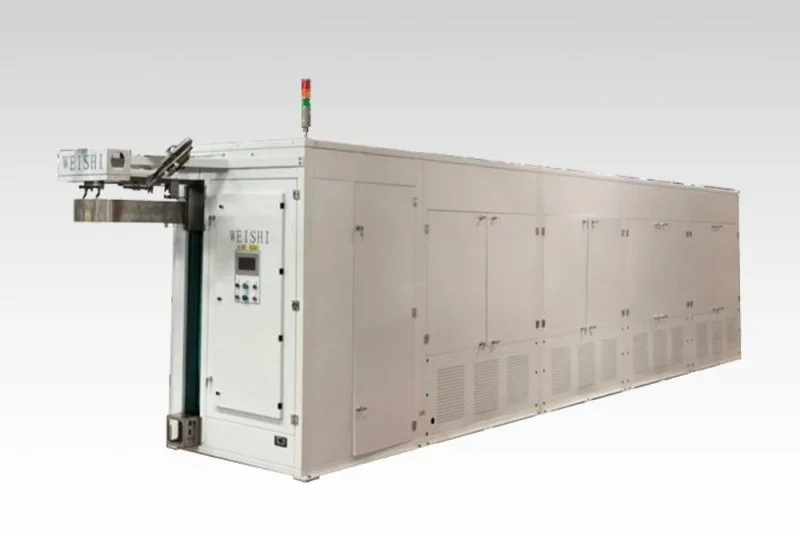

Steam Tunnel

    • Dual-Channel Side Entry: Utilizes a shared heat source for energy optimization, significantly increasing production capacity.

    • Advanced Cleaning and Safety Features: Equipped with plush self-cleaning capabilities and falling object detection, complete with an alarm system for enhanced operational safety.

    • Energy Efficient Design: Optimizes heat distribution for reduced energy consumption, enhancing sustainability and lowering operating costs.

    • Robust Construction: Built with high-quality materials to ensure durability and reliability, even in high-demand industrial environments.

    • Voltage: 380V/3 Phase/60Hz

    • Fan Power: 35 kW (comprising four 6 kW fans and two 5.5 kW fans)

    • Total Power: 40 kW

    • Air Pressure: Approx. 87 psi (0.6 Mpa)

    • Air Consumption: Approx. 1.6 CFM (45 liters/hour)

    • Steam Pressure: Approx. 87 psi (0.6 Mpa)

    • Steam Consumption: 706 lbs/h (320 kg/h), reduces to 551 lbs/h (250 kg/h) after preheating

    • Steam Pipe Diameter: 2 inches

    • Return Pipe Diameter: 3/4 inch

    • Condenser Pipe Diameter: 1/2 inch

    • Dimensions: 38 ft 5 in x 6 ft 11 in x 8 ft 10 in (11700 mm x 2118 mm x 2700 mm)

    • Weight: 7716 lbs (3500 Kg)

  • Message us for lead times.
